Hera Basic For On-Premise Laundry Equipment

The unconnected, standalone version of Hera Smart

The same top level performance, in a standalone version with no internet connectivity

Hera Basic is designed for anyone who wants to enjoy a modern, elegant and powerful controller but doesn't need, at the present moment, to leverage WIFI connectivity. In one sentence, Hera Basic is the most advanced controller for laundry equipment in the standalone category.

A control device smoothing your daily operations... and making them more enjoyable too!

Industrial washing equipment can be highly differentiated with this electronic gem that will boost operations and ease the work of laundry operators.

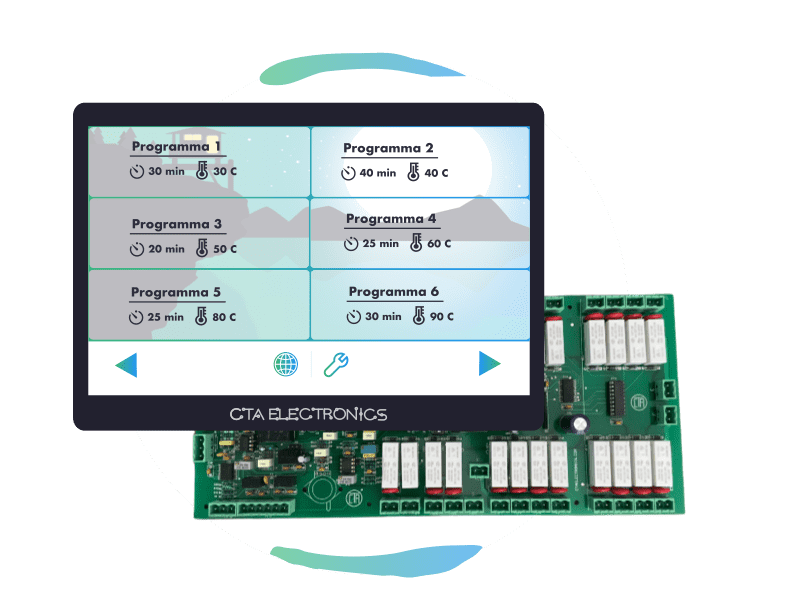

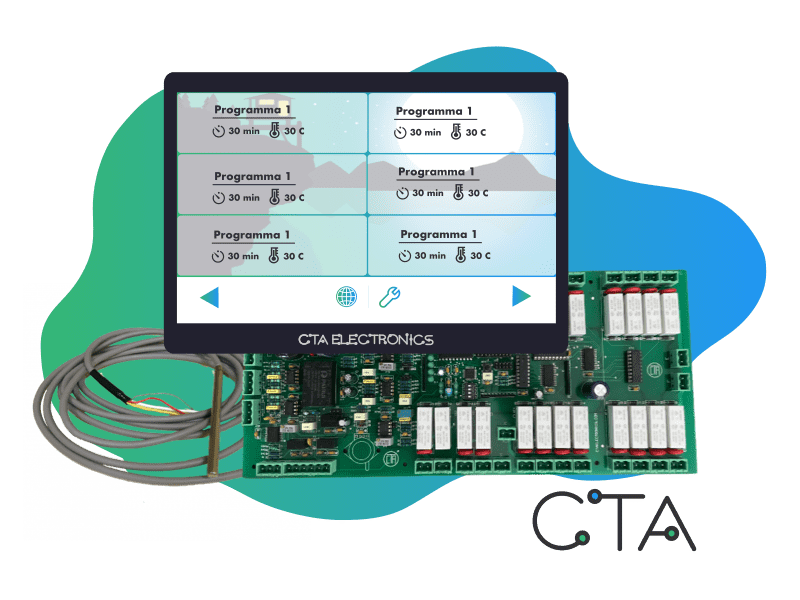

1. CPU to be placed on the front of the washing machine, where it provides the function of user-machine interface through an expertly crafted user experience

  • Microcontroller-based architecture
  • Multilanguage user interface designed to maximise both productivity and user experience
  • 7 inches wide resistive touch screen, calibrated for precision and safe operation
  • Elegant and compact case that enriches the aestethics of laundry equipment

2. IO board, with 16 or 24 relays and built-in modbus communication, to be placed inside the washing machine and connected to all the various elements concurring to your wash operation (door lock, electrovalves, chemical pumps, drive...)

  • 24 relays or 16 relays
  • On-board buzzer
  • On-board pressure sensor
  • Temperature sensor input
  • N° 8 digital inputs, optoisolated
  • N° 4 analog inputs dedicated to sensors
  • N° 8 free digital outputs
  • Power supply: 24Vdc (external)

3. A mobile app to easily create your own custom library of wash programs, that can be synced to a machine in a instant via BLE (bluetooth low-energy)

  • Multilanguage
  • Special wash cycles wizard
  • Special wash programs wizard
  • Flexible and powerful
  • Intuitive and easy to use
  • Available for both iOS and Android
Hera Laundry

Enhancing the Laundry Industry through Electronics and Computer Science

Proudly Made in Italy 🇮🇹

Hera is designed and produced by CTA Electronics, Italy. Italian Excellence in Industrial Electronics, operating in the field since 1992.
